40Kpps ILDA & APP Full Color Animation Laser Light Projector for Logos and Branding
A powerful dual-head handheld green laser pointer that creates fat, visible beams for instant visual impact, perfect for bird control, KTV rooms, bars, and electronic music parties.
Key features
- 10W RGB Animation Laser – Solid-state semiconductor laser with 10W total power (Green 3W, Red 3W, Blue 4W)
- Multiple Control Modes – DMX-512, Music Control, Automatic, APP, ILDA Control, and Master-Slave operation
- Advanced Scanner System – 40Kpps scanner with ±25° pan/tilt range
- Programmable Effects – Text, Animation, Laser Engraving, Dynamically Changing Laser Beams
- 12/21 Channel DMX Control – Standard DMX-512 protocol support
- Modulating Signals – TTL 0~20K and Analog modulation for professional control
- Multi-format Control – Standalone, DMX-512, ILDA, APP, and Music-reactive modes
Customizable, Low OEM/ODM Price & Long Warranty:
With Ecteh Lighting, Be Experted About Laser Lights.
All laser show system products can be customized upon request. Output: 200mW-200W diode-based laser systems, with the industry’s best and longest warranty: a 2-year warranty for all parts.
Description

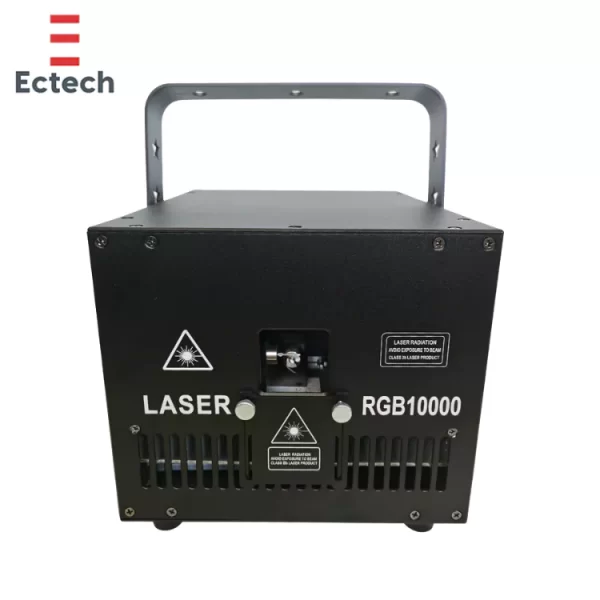

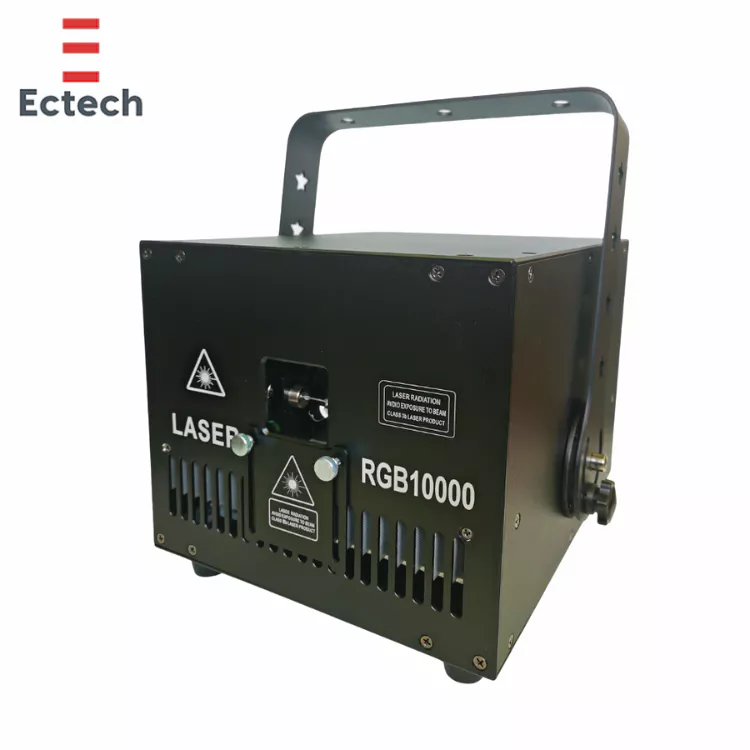

The YX611-RGB10000 is a professional full‑color laser designed for clubs, DJs, live events, and stage productions, bringing pro-level laser text, graphics, and beam shows to clubs, concerts, and live events with a high‑speed 40Kpps scanning, ILDA and APP control, and rich built‑in animation effects.
What makes it different?
-
10W RGB laser output (G3W + R3W + B4W) for bright, saturated full-color shows.
-
40Kpps scanner system with ±25° scan angle for smooth animation and graphics.
-
Multiple control modes: DMX-512, Auto, Music (sound-active), ILDA, APP, and Master-Slave.
-
Effects support: text, animation, laser engraving style looks, and dynamically changing beams.
-
Pro integration options: 12CH/21CH DMX plus ILDA for computer-based laser show software.
- Smartphone APP control – Optional Bluetooth/WiFi module enables real‑time control, playlist management, and custom show creation via LovelyDraw app on iOS/Android.
Light effects
- Text display with custom fonts
- Pre-programmed Animation patterns
- Laser Engraving effects
- Dynamically changing laser beam sequences
- Pattern morphing and color transitions
- Speed-adjustable effects
Typical applications
Designed for indoor professional entertainment use, including:
- Laser text and logo projection for branding and events.
- Club and DJ laser shows, nightlife venues, and dance floors.
- Live events, concerts, stage productions, and theater.
- Laser light shows, event décor, product launches, and promotional events.
Reliability and performance
- Text display with custom fonts
- Pre-programmed Animation patterns
- Laser Engraving effects
- Dynamically changing laser beam sequences
- Pattern morphing and color transitions
- Speed-adjustable effects
Technical Specifications
Optional Laser Power for Model YX611: 10W, 12W, 15W, 20W
Optical & Performance
| Specification | Value |
| Laser Source | Solid Semi-Conductor Laser Generator |
| Laser Wavelength | Green: 530nm, Red: 638nm, Blue: 450nm |

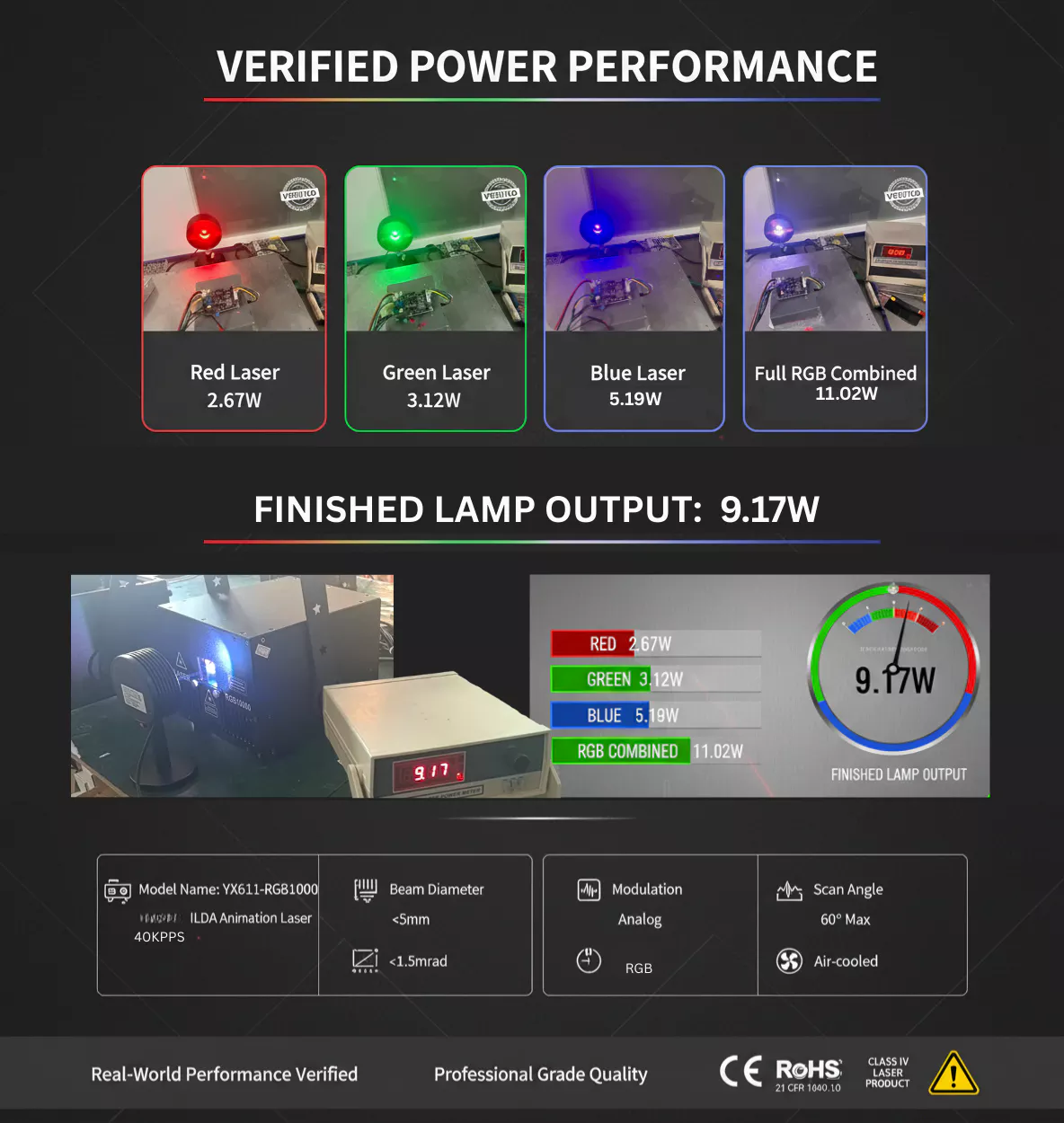

| Laser Power | 10W Total (Green 3W, Red 3W, Blue 4W) |
| Scanner System | 40Kpps (40,000 points per second) |
| Scanner Angle | ±25° (Pan and Tilt) |
| Color Output | Green, Red, Blue (True RGB) |
Electrical Specifications
| Specification | Value |
| Input Voltage | AC110V/230V 50~60Hz ±10% |
| Power Consumption | 200W |
| Modulating Signal | TTL 0~20K / Analog Modulation |
| Protection | Thermal protection, auto-shutdown |
Control Specifications
| Specification | Value |
| DMX Protocol | DMX-512 International Standard |
| Control Channels | 12 or 21 Channel modes |
| Control Modes | DMX-512, Music Control, Automatic, APP, ILDA Control, Master-Slave |
| ILDA Support | Standard ILDA protocol compatible |
| APP Control | Smartphone/Tablet compatible (via optional receiver module) |
Mechanical Specifications
| Specification | Value |
| Operating Temperature | −40°C to 45°C |
| Operating Environment | Indoor only |
| Cooling System | Active cooling fan |
| Case Dimensions | 42cm × 36cm × 30cm (Carton) / 53cm × 38cm × 43cm (Flight Case) |
| Weight | 10kg (Carton) / 18kg (Flight Case) |
| Mounting | Threaded M8 bolt holes (x2) |
| Safety Features | 13mm safety loop, auto-shutdown, thermal protection |
Who is the product for?
-
Regional distributors and stage lighting equipment suppliers
-
It is a small but very practical entertainment prop with a wide range of entertainment applications, offering low investment and high returns.
-
-
Bar / KTV / club owners
-
an easy handheld laser to add fat‑beam green effects or visual accents during sets in small indoor venues.
-
-
Facility managers and operators
-
It’s portable and convenient for immediate use. Visible green lasers for basic bird‑repellent or bird‑control tasks, where a concentrated, clearly visible beam helps scare birds away from specific areas
-
-
Building or wall projections
-
for large animated logos, event titles, and sponsor loops at festivals, stadiums, or city landmarks.
-
-
Indoor promo and retail:
-
Projected text/images on floors, walls, and backdrops in showrooms, auto dealerships, and pop‑up stores as an alternative or complement to GOBO projectors and LED signage.
-
Why choose Ectech Lighting
- 15+ years laser manufacturing with a complete, high‑quality supply chain for stable performance and fast delivery.
- Bulk orders and OEM branding for regional distributors are welcome.
- Competitive pricing and support for small trial orders from Ectech Alibaba Store.
- Click here to learn about our world wholesale policy and empower your downstream service providers.
Order a sample right now from Ectech Online Store.
